Precision LED Lead Frame Mold Insert Molding

What is Precision LED Lead Frame Mold Insert Molding?

An insert mold is a type of plastic mold used to manufacture plastic products that contain embedded components or inserts. This mold works by placing pre-made inserts (usually metal parts or other materials) into the mold, followed by plastic injection molding, which fuses the plastic and insert into a single, cohesive piece. Insert molds are widely used in the production of plastic products that require enhanced strength, conductivity, thermal stability, or other special properties.

Key Features and Components of Insert Molds

1.Mold Base: The main body of the mold, made from high-strength metal to ensure durability and precision.

2.Insert Fixation System: Used to precisely position and secure inserts within the mold, ensuring they do not move during the injection process.

3.Cavity: The interior cavity of the mold that, together with the insert, forms the final product shape.

4.Injection System: Includes the injection port, runners, and gates, which are used to inject molten plastic into the mold cavity.

5.Cooling System: Ensures rapid cooling and solidification of the plastic, tightly bonding it with the insert.

6.Ejection System: Used to eject the finished product from the mold after molding.

Advantages of Insert Molds

●Enhanced Product Performance: Inserts improve the strength, wear resistance, conductivity, and other properties of plastic products.

●Improved Product Quality: The integral molding of inserts and plastic reduces subsequent assembly processes.

●Design Flexibility: Inserts can be designed in various shapes and materials to meet different functional requirements.

Challenges of Insert Molds

●Complex Design: Requires precise design of the insert shape and position to ensure good integration with the plastic part.

●High Manufacturing Difficulty: High precision is required in both mold and insert fabrication, which increases costs.

●Strict Production Process Control: Precise control of injection process parameters is necessary to ensure product quality.

Overall, insert molds play a crucial role in manufacturing plastic products that require high strength, special functions, or complex structures. They are widely used in electronics, automotive, medical devices, home appliances, and other fields.

Features of Our Insert Molds for LED Frame Plastic Molds

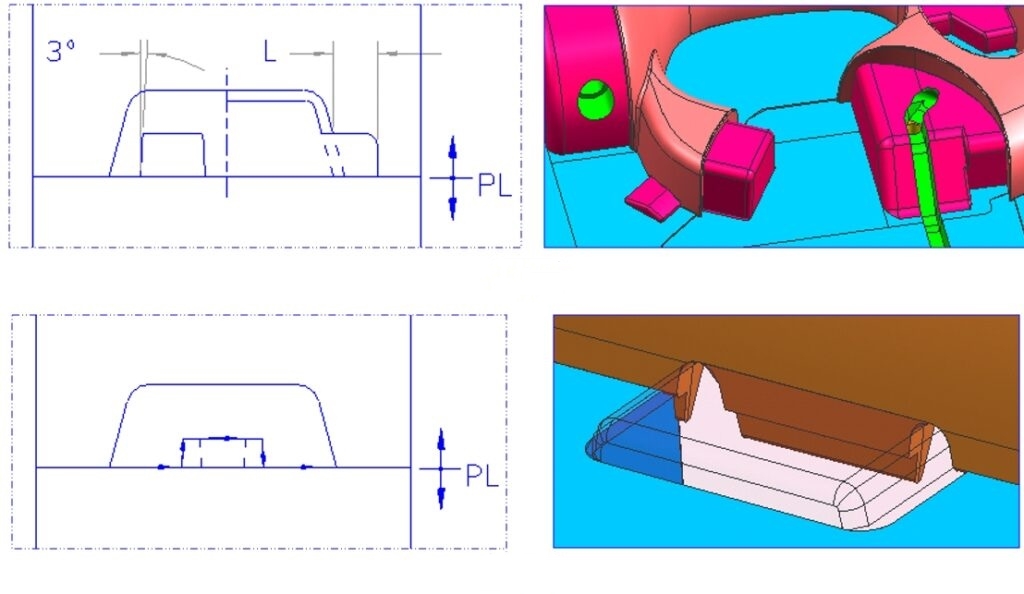

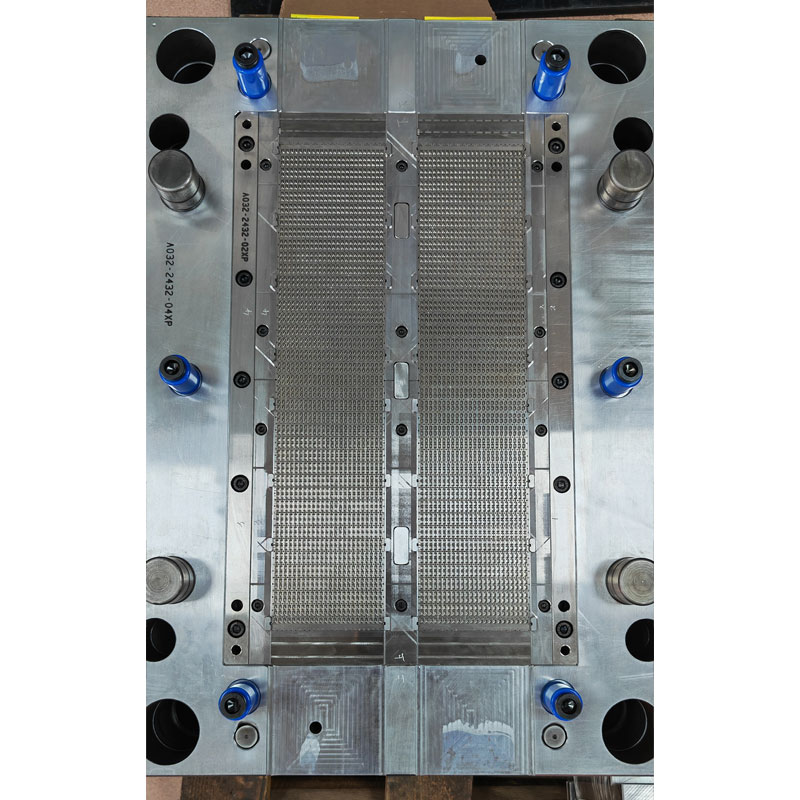

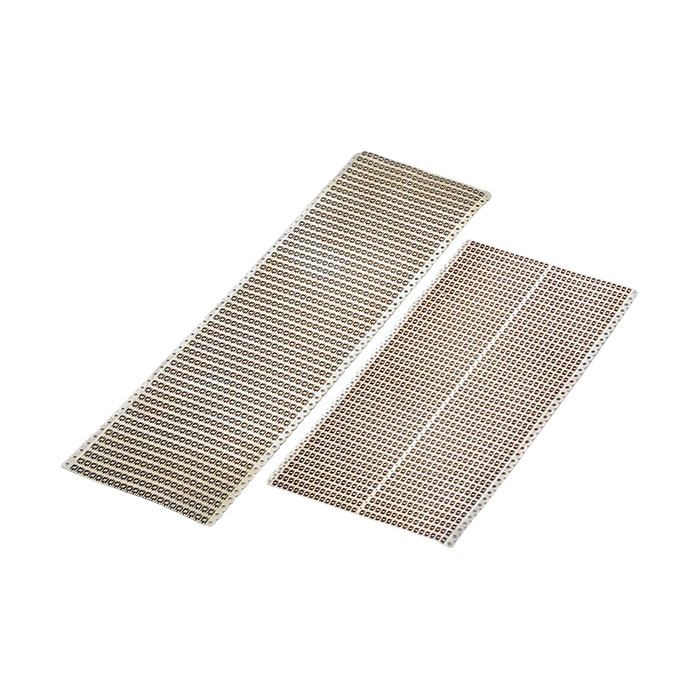

Our insert molds for LED frame plastic molds are distinguished by their high cavity count (some designs exceed 6000 cavities), requiring extremely high standards for injection and cooling, and complex structures. Advanced technology, extensive experience, and high-precision equipment are essential. With over 10 years of expertise in this field, we are your ideal partner, ready to provide the perfect solution for your needs!
