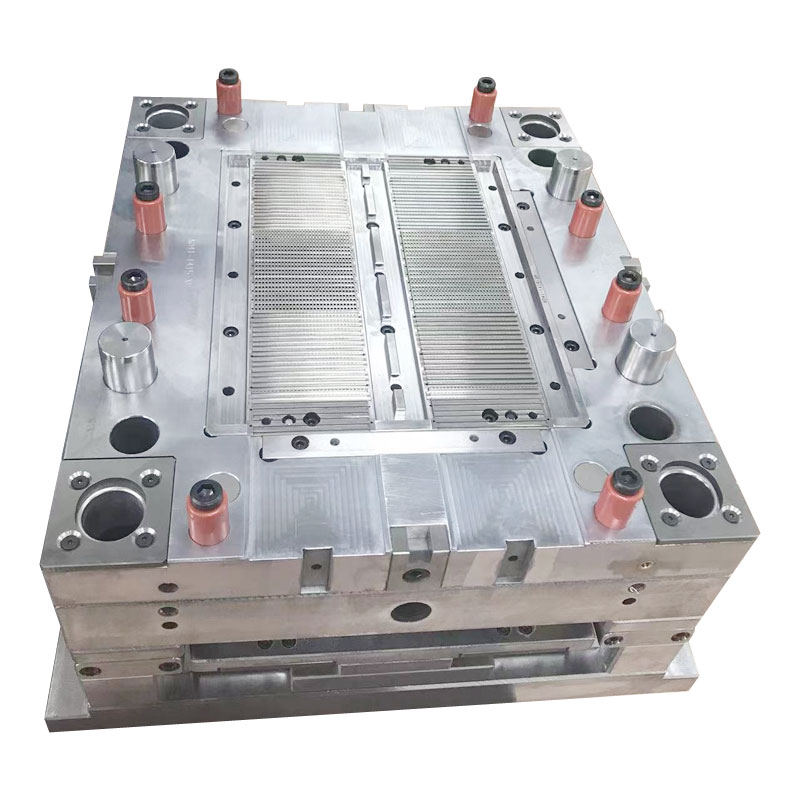

Plastic LED Lead Frame Multi Cavity Mold

What is a Plastic LED Lead Frame Multi Cavity Mold?

Multi-cavity mold has multiple cavities within the mold. These cavities allow for the simultaneous production of multiple identical or different plastic parts. The primary purpose of designing multi-cavity molds is to enhance production efficiency and output while reducing manufacturing costs.

Features of Multi-Cavity Molds

● High Production Efficiency: Multi-cavity molds can produce multiple products in a single injection cycle, significantly boosting production efficiency.

● Cost-Effective: By producing several parts per injection, the cost per part is greatly reduced.

● Consistency and Precision: Multi-cavity molds ensure that each cavity produces parts with consistent dimensions and quality, maintaining high levels of precision and uniformity.

● Complex Design: The design and manufacture of multi-cavity molds are highly demanding, requiring precise runner design and uniform filling to ensure all cavities fill and cure simultaneously.

● High Material Utilization: Optimized runner design reduces material waste and enhances material utilization.

● Ideal for Mass Production: With its efficient production capacity and cost advantages, multi-cavity molds are particularly suitable for large-scale production needs.

● Complex Cooling Systems: Multi-cavity molds typically require intricate cooling systems to ensure uniform temperature across all cavities, preventing product deformation.

● High Maintenance Requirements: Due to the large number of cavities, maintaining and servicing multi-cavity molds is more complex, requiring regular checks and maintenance to ensure long-term stable production.

Features of Multi-Cavity Molds in LED Lead Frame Molds

Compared to standard multi-cavity molds, those used in LED Lead Frame molds have a higher number of cavities, more complex designs, and higher precision requirements. The manufacturing equipment for these molds demands greater accuracy, and factories need to possess skilled and advanced techniques and experience.

Our Capabilities

A common multi-cavity mold is 2-128 cavities, Our team can design molds with up to 6000 cavities,not 600 cavities (depending on the specific SMD model),very surprised ? yes, we could achieve perfect injection and cooling, which significantly reduces production costs. We are experts in LED lead frame plastic molds, leading the industry in China and globally far away.

Let’s be a partner to provide you with the most perfect solution!
