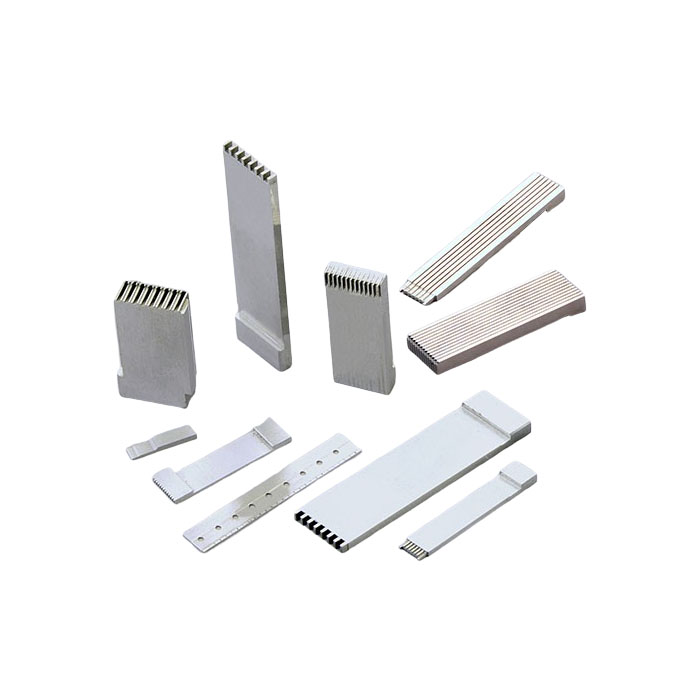

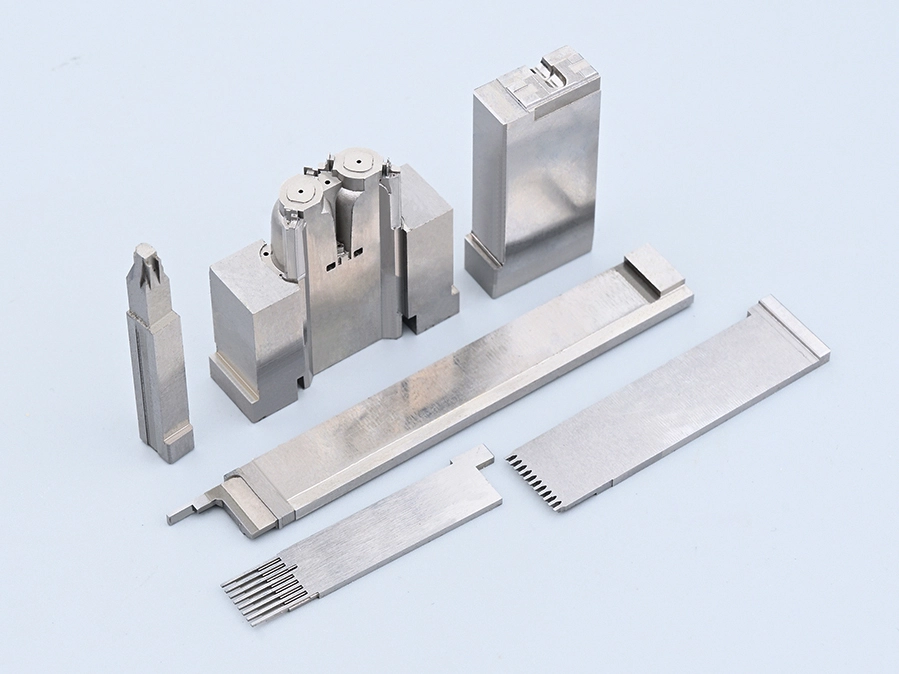

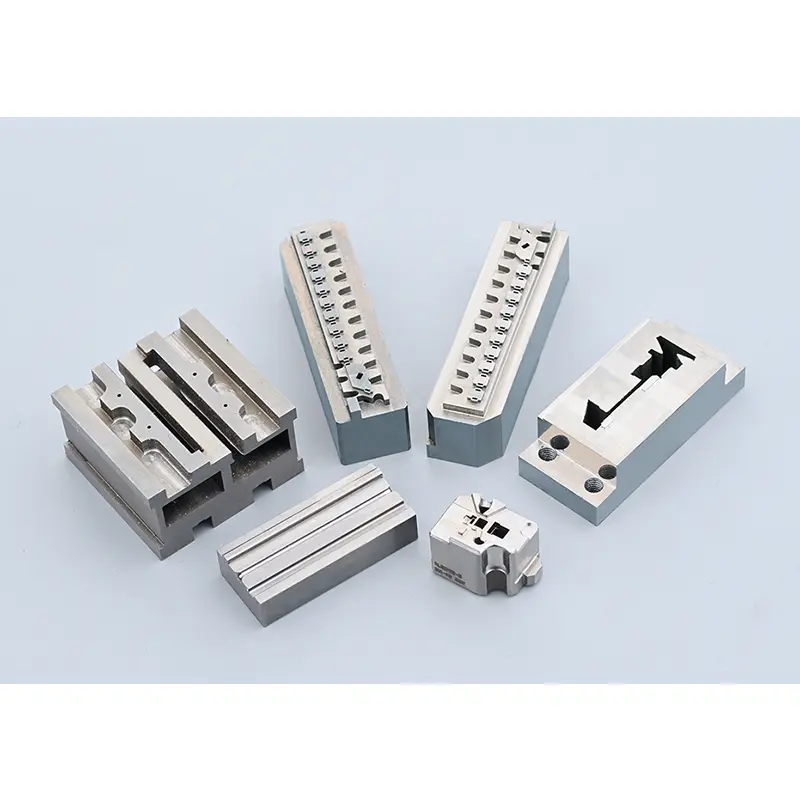

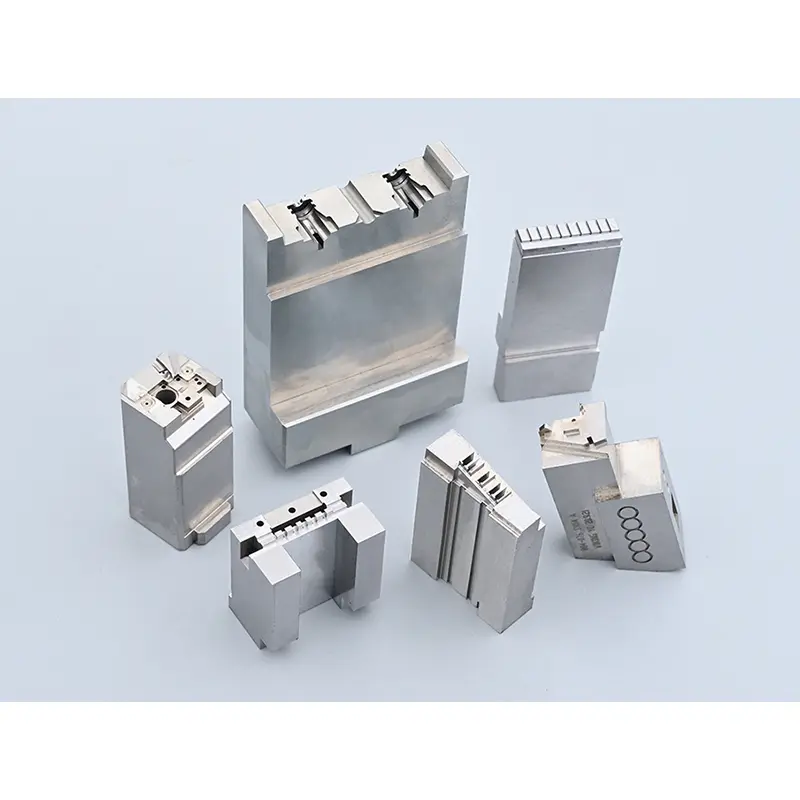

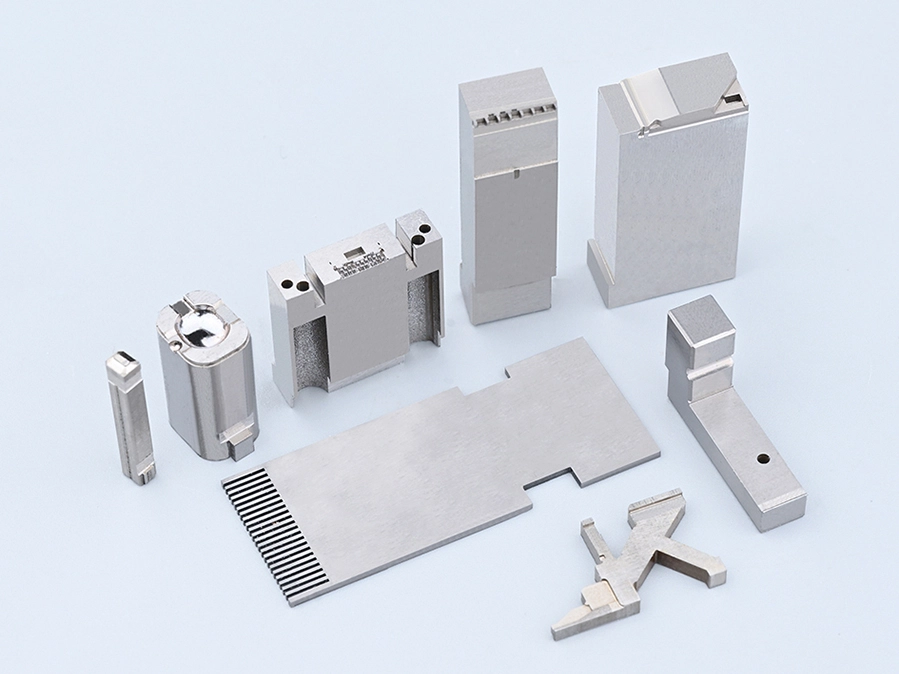

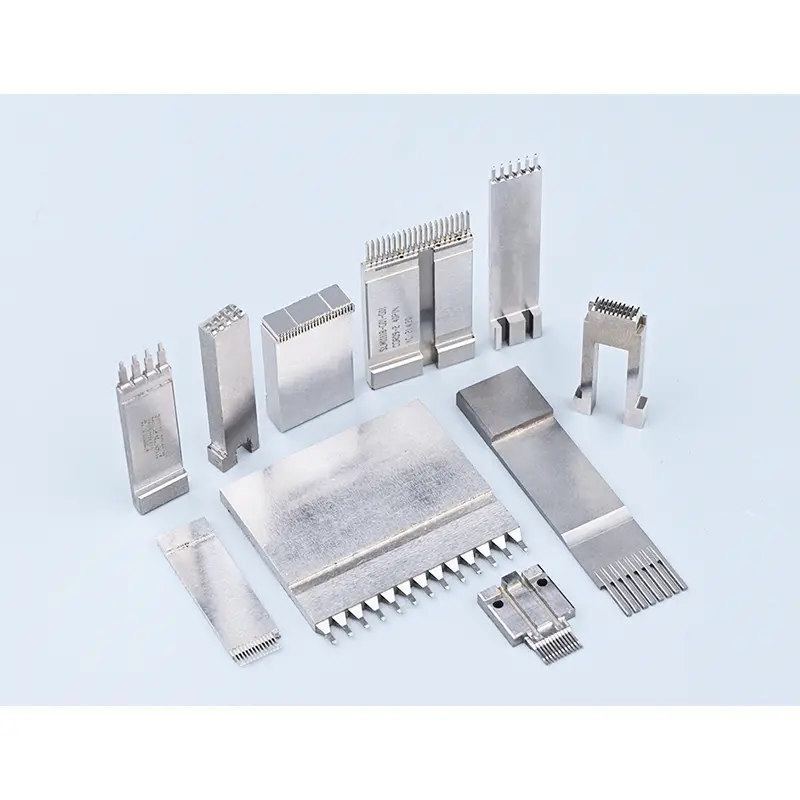

Precision Machining for Connector Components

What is Precision Machining for Connector Components?

Precision machining for Connector components refers to the technical approach of manufacturing and processing the components within connectors through precise machining processes and equipment. As an electronic component, connectors are primarily used to connect circuits and power sources in electronic devices, and their performance and quality are crucial to the overall performance and reliability of electronic equipment.

Precision component processing is a form of machining, but due to the high precision requirements for the processing of components, it imposes stricter demands on production machinery and processes. In the process of connector precision component processing, strict control over processing accuracy is necessary to ensure that the dimensions, shapes, positions, and other parameters of the components meet design requirements. This typically involves the use of high-precision machine tools, cutting tools, fixtures, as well as precise measurement and inspection equipment.

What is the key Feature for Precision Machining of Connector Components ?

1. High Precision Requirements

● Micron-level Accuracy: The processing precision of precision components for connectors often reaches the micron (μm) level, posing stringent demands on processing equipment and techniques. Any minor deviation can impact the performance and reliability of the connector.

● Complex Structures: The intricate geometries of connector components, such as numerous grooves, corners, and minute, intricate shapes, significantly increase the complexity of processing.

● Precise Assembly: The combination of components, including the concave and convex dies, and sometimes multiple modular pieces, necessitates extremely high precision in their fabrication.

2. Complex Surface Shapes

● Multiple Surface Combinations: Some connector products, like 5G base station connectors, automotive connectors, and mobile phone backplate connectors, feature surfaces composed of various curved surfaces, leading to complex mold cavity surfaces that complicate processing.

3. Corrosion and Wear Resistance

● Corrosion Resistance: The surface treatment layers of metallic structural components and contacts may undergo electrochemical corrosion, affecting the physical and electrical properties of the connector. Thus, components must possess excellent corrosion resistance.

● Wear Resistance: The connector's performance and reliability must endure repeated insertion and extraction cycles, necessitating high wear resistance in its components.

4. High Efficiency Demands

● Small Parts, Multiple Varieties: Connector molds are typically small, with multiple varieties and short delivery times, requiring highly efficient processing.

● Efficient Production Processes: Processing techniques must not only meet high-performance indicators but also prioritize efficient production to meet market demands.

5. Complex Processing Sequences

● Multiple Operations: Mold processing involves various operations such as milling, boring, drilling, reaming, and tapping, each requiring rigorous control to ensure the final product's quality.

6. Material Diversity

● Difficult-to-Machine Materials: Precision components for connectors may be made of high-strength, wear-resistant, and corrosion-resistant materials like titanium alloys and stainless steel, posing challenges in processing due to their material properties.

7. Selection of Processing Methods

● Electrical Discharge Machining (EDM): Addressing the material diversity, structural complexity, and dimensional accuracy challenges, EDM is a crucial processing method. However, EDM has limitations, including relatively slow processing speeds and electrode wear.

Why choose XP mold company  ?

We have fully experience and high precision equipment to deal with numerous challenges related to precision, surface complexity, corrosion and wear resistance, efficiency, processing sequences, material diversity, and method selection. Overcoming these challenges requires the adoption of advanced processing equipment and techniques, rigorous quality control and inspection, and the enhancement of workers' skills and technical expertise.
